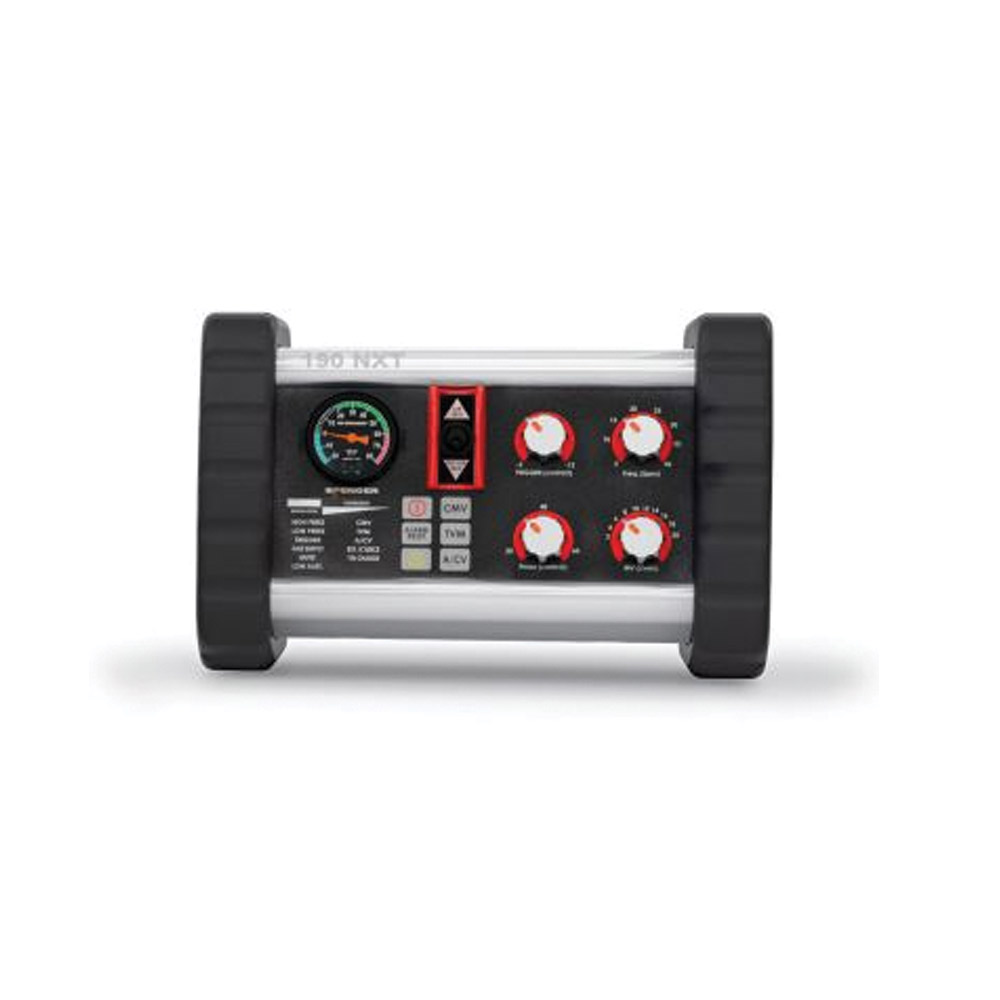

Spencer 190 NXT Electronic Lung Ventilator

Spencer 190 NXT Lung ventilator
Electronic lung ventilator for non-invasive ventilation of adult and pediatric patients.
Specific features
Protection against accidental activation of the AIR MIX selection lever
Color coded manometer for an easy identification of pressure ranges
The positioning of input and output ports on the side of the device, makes
connecting and disconnecting easier and offers greater protection to the
elements connected to the device
Control knobs on high contrast background for a better identification of the set
values
The aluminum frame is compact and allows extreme reduction of weights
The placing and the shape of adjustment knobs make the setting of parameters
easier in all operative conditions
Constant I/E ratio
Alarms for ventilation monitoring and device management
Led bar for monitoring of breaths
Three ventilation modes:
CMV: A mandatory inflation is initiated according to the set parameters
TVM: An inflation is initiated according to the set parameters only if triggered
by the patient
A/CV: The inflation is assured to be initiated at intervals determined by the set
rate, unless initiated by an earlier patient-trigger event
