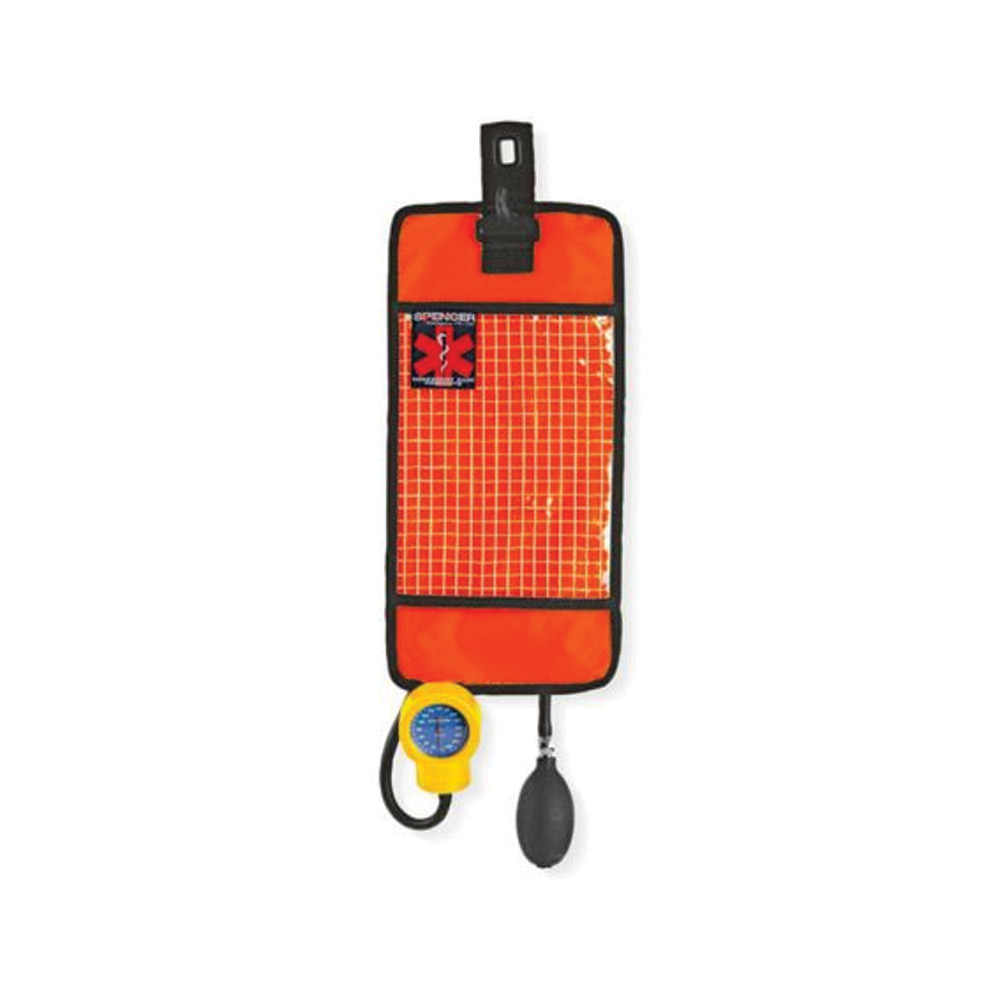

WIV IV subministration bag

Reusable device intended for IV infusion treatment, to be used during transportation of patient inside
healthcare environments like hospitals, clinics and medical surgeries.
Specific features
The transparent pocket used to store IV infusion, allows a
quick view of the content
Eyelet on the upper part, allow to hang the bag
The integrated pressure gauge and the control valve, allow
extremely accurate pressure settings
The device can be used with 500cc and 1000cc IV bags
Technical data
Dimensions 370x180 10mm
Press.gauge tube length 190 10mm
Inflation bulb tube length 190 10mm
Pressure gauge scale 0-300 mmHg
Divisions every 2 mmhg
Maximum applicable pressure 250 mmHg
Pressure gauge diameter 50 mm
Materials Nylon, rubber, Al,
Chromed brass
Weight 320 20g
Class I Med.Device according to Dir. 93 42 CEE
PRESSURE INFUSER WIV
IF00301A
CND Classification V9099
Registration number 103738
